Basic Info.
Model NO.
HDS-761271S
Applicable Model
Car, SUV, Truck, Agricultural Vehicles, Engineering Vehicles, Sightseeing Car, RV, Forklift, Harvester, Corn Machine
Shell Material
ABS Plastic
Probe Number
2
Display Type
Reverse Image
Interface
Air Plug
Function
Waterproof, Dustproof, Shockproof
Definition
1080P
Chip
Sony
Waterproof Grade
IP69K
Alarming Distance
2.5-0.35m
Probe Diameter
18.8mm
HD Car Monitor
Mhd-761
Color LCD Display
7-Inch IPS Screen
Resolution
1024(H) X 600(V)DOT
Video Input
Supports up to 2 Channels of Ahd1080p/ 720p/CVBS V
Picture Mode
Single Channel Switching
Brightness
600CD/M2
Vibration Class
5g (in Line with GB-T2423056-2006 Standard)
Operating Temperature
-20ºC to +70ºC
Operating Voltage
DC11-32V
HD Car Waterproof Camera
Chd-271s
Image Sensor
1/3 Color Sony
Horizontal Resolution
720p
Viewing Angle
165°
Night Mode
Full Color Night Vision
Waterproof Level
IP69K
Transport Package
Color Box
Specification
87(W) x 75(H) x 70(D) mm
Trademark
VEISE
Origin
China
Production Capacity
400000PCS/Month
Product Description
Product Description

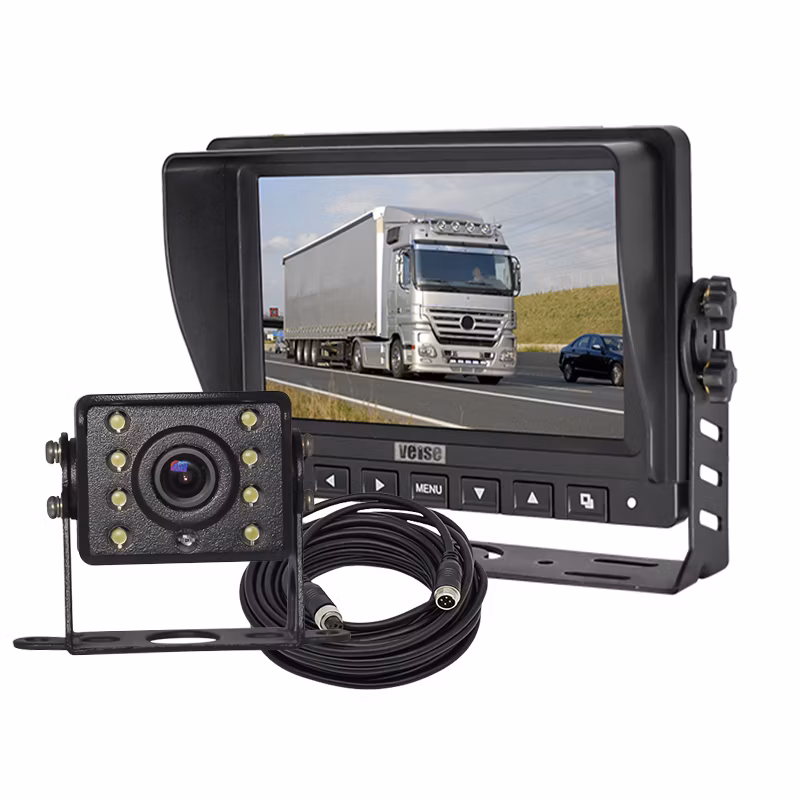

Wired Monitor Rear View Backup Mini Camera System for Farm Tractor, Truck, RV, Forklift, Heavy Equipment,Excavator, Skid Steer loader

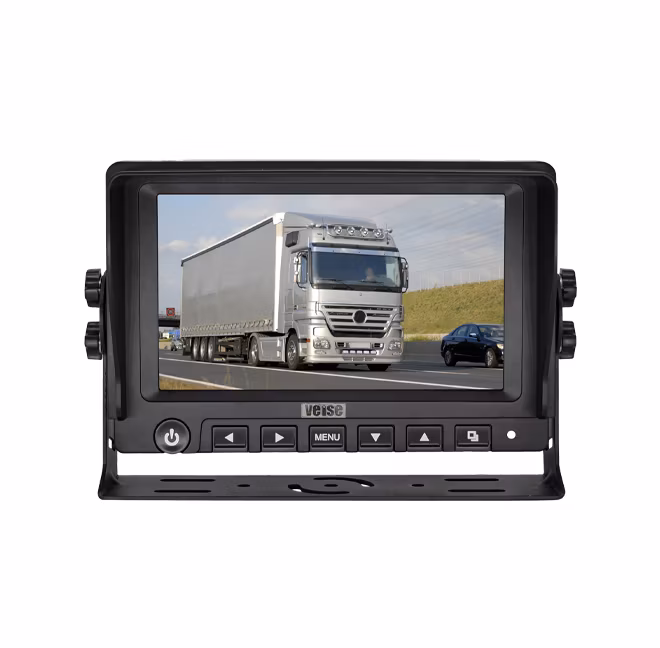

7-inch high-definition screen monitor supports 2 video inputs
Automotive industrial grade digital video processor
1024RGBX600 high resolution
600cd/M2 high brightness
Anti-Load Dump Pulse Voltage Design
Energy-saving and low-power independent power supply design
DC11~32V wide range working voltage
Built-in reverse polarity, LED constant current, load dump pulse voltage suppression protection
720P HD rear view camera
IP69K waterproof rating
165° Viewing angle
6 pcs 850nm infrared LED
5G seismic rating
Heat-dissipating aluminum alloy case
Cold-resistant waterproof tail cable
U-shaped + bilateral fastening bracket
DC 12V operating voltage
Automotive industrial grade digital video processor
1024RGBX600 high resolution
600cd/M2 high brightness
Anti-Load Dump Pulse Voltage Design
Energy-saving and low-power independent power supply design
DC11~32V wide range working voltage
Built-in reverse polarity, LED constant current, load dump pulse voltage suppression protection
720P HD rear view camera
IP69K waterproof rating
165° Viewing angle
6 pcs 850nm infrared LED
5G seismic rating
Heat-dissipating aluminum alloy case
Cold-resistant waterproof tail cable
U-shaped + bilateral fastening bracket
DC 12V operating voltage
| Model | MHD-761 | |
| Color LCD display | 7-inch IPS screen | |
| Resolution | 1024RGB(H) X 600(V)dot | |
| Video input | 2 video inputs | |
| Display mode | Single screen | |
| Video signal input | CVBS /AHD720P /1080P | |
| OSD menu function | Set the front image/mirror separately, set the reversing delay time, trigger priority, multi-language | |
| Color system | PAL/NTSC (AUTO) | |
| Brightness (cd/m2) | 600 | |
| Contrast | 800:1 | |
| Surge and load dump protection | ISO16750-2 standard (24V system Us=174V, Ri=4Ω, td=350ms) | |
| Connector socket | 2m conjoined cable | |
| Working temperature | -20ºC to +70ºC | |
| Storage temperature | -30ºC to +80ºC | |
| Working voltage | DC11-32V | |
| Seismic level | GBT 2423.56-2018 standard (random 5G vibration) | |
| Size | (L x W x T) (218 x 149 x 82mm) | |
| Weight | 800g | |
| Model | CHD-271S | |
| Image Sensor | 1/3 Color Sony | |
| Effective Pixels | 1280(H)X960(V) | |
| Horizontal Resolution | 720P | |
| Viewing angle | 165° | |
| Night mode | Full color night vision | |
| Signal-to-noise ratio | ≥48dB(AGC Off) | |
| Video signal output | AHD 720P | |
| Shell material | Aluminum alloy | |
| waterproof level | IP69K | |
| Operating Voltage | DC 12V±10% | |
| Operating temperature | -20°C~+60°C | |
| Storage temperature | - 30°C~+70°C | |
| Vibration resistance level | 5G (in line with GB-T2423056-2006 standard) | |
| Body interface | 4-core aircraft female head | |
| Product Size | 87(W) x 75(H) x 70(D) mm | |
| HD video signal cable (XC-HD0004-B-15M-4X) | |
| Interface | 4 core aviation male and female header |
| Length | 15 meters |
Detailed Images
Our Company
R & D
Quality Control
The light intensity analyzer ensures that the output light intensity of LED warning light conforms to ECE R65;
The patented sealed pressure tester to ensure that the waterproof level of the camera and light conforms to IP69K;
