Basic Info.
Model NO.
TL704
Type
Wheel Tractor
Usage
Farm Tractor, Garden Tractor, Lawn Tractor
Certification
ISO, CE, EPA, CCC, ISO/TS16949, EEC, XQC
Drive Wheel
4WD
Emission Standard
Euro III
Fuel
Gas / Diesel
Service Life
6-10 Years
Size
Large
Color
Red
Condition
New
Optional
with Canopy or Cabin
Pto Shaft
540/760
Gearbox
8f+8r
Linkage
3 Point Linakge
Rear Wheel Specifications
7.5-16/12.4-24
Hydraulic Output
2 Groups
Clutch
Dual Stage Clutch
Maximum Lifting Force at 610mm(kN)
8.3
Dimensions(mm)
3650X1650X2550
Transport Package
Full Container
Specification
70HP
Trademark
TAVOL
Origin
China
HS Code
8701901101
Production Capacity
10000sets/Year
Product Description
Company Messages
Tavol Group is a High-tech Groups Companies, Which Engage in High-end Agricultural Equipment Manufacturing,
Construction Machinery and High-precision Monitoring Sensors. Tavol Group is Located at the Foot of the World-famous
Mountain Taishan. Has Passed ISO9001, CE, SGS, BV, AAA, WIPO Madrid International Trademark, High-tech Enterprise
Certification and Special Equipment Manufacturing License etc.
The Mission of Tavol Group is to Assemble the Best Tractors With the Best of Heart, and Strive for the Smiles of One billion
Farmers; With the Values of Tolerance, Openness and Win-Win, Adopt Strict Production Technology and Inspection Standards,
Select the Best Quality Brand Tractor Parts. To ensure a 100% Quality Standard, We will Independent Development and
Production the Core Tractor Parts, Continue to Increase Investment in New Models and Technologies.
Focused on Development Of the Agricultural Machinery, Like Paddy Fields, Mountains, Hills etc; Products range: 25hp-280hp Farm Tractors and Other Farm Machines.

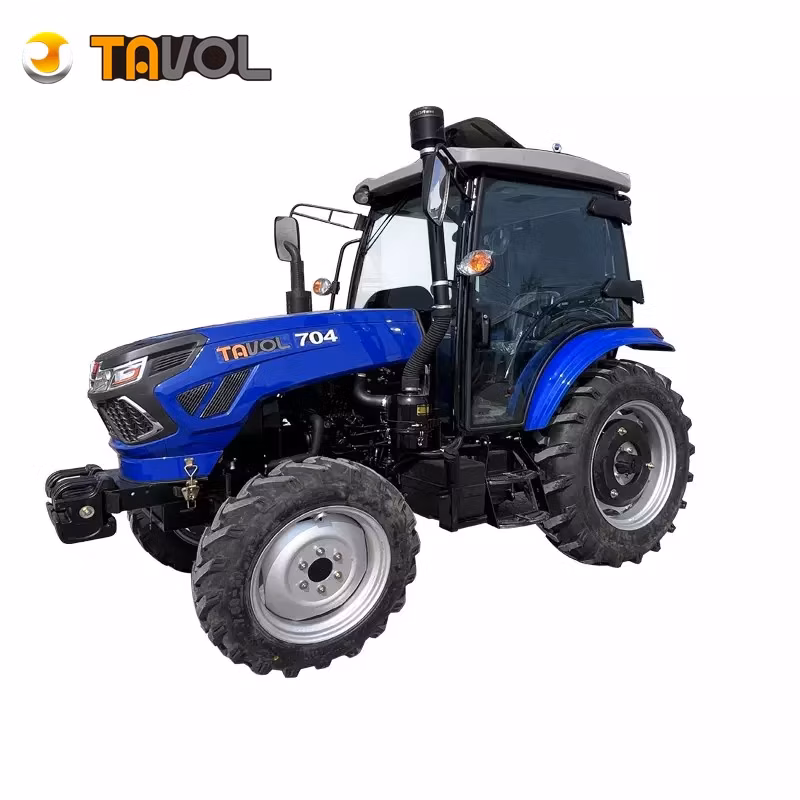

| Tavol 70hp Tactor Main Parameters | ||
| Model | TL704E | |
| Machine parameters | Type | 4×4 |
| Rated Traction( KN) | 16.2 | |
| PTO Max Power (KW) | 43.8 | |
| Dimensions(mm) | 3560×1650×2350 | |
| Wheelbase(mm) | 1965 | |
| Track(mm) | Front wheel(mm) | 1150 |
| Rear wheel(mm) | 1200-1360 | |
| Ground clearance(mm) | Minimum ground clearance(mm) | 330 |
| Minimum turning cricle radius | Use unilateral braking | 2.85±0.20 |
| Not unilateral braking | 3.15±0.30 | |
| Minimum use quality | 1660 | |
| Gearbox | 8F+8R Shuttle Shift | |
| Steering System | hydraulic steering gear | |
| Drive Train | Clutch | double acting clutch |
| Working equipment | Maximum lifting force at 610mm(KN) | ≥10 |
| Suspension mechanism | Three-piont suspension type 1 | |
| PTO shaft | PTO Spedd(r/min) | 540/760(option: 540/1000) |
| Tire | Front wheel specifications | 6.00-16/6.5-16/7.5-16 |
| Rear wheel specifications | 9.5-24/11.2-24/12.4-24/12.4-28 | |
| Engine | Type | Inline, 4 stroke, Water cooled |
| Cylinder | 4 | |
| Optional | Cabin | AC/Heater |
| Roll bar | ||
| Canopy | ||
| Perfusion volume | Radiater(L) | 10 |
| Fuel tank(L) | 29 | |
| Engine oil pan(L) | 5 | |
| Driveline oil (L) | 20 | |
| Lifter(L) | 9.5 | |
| This parameter table is for reference only, everything is based on actual products | ||
Q1:Are you the factory or the trading company?
A1:We are the factory,we located in Taian City,Shandong Province,China.Q2:What after-sales service can your company provide?
A2We can provide technical support and on-site installation support!
Q3:Can you provide spare parts for free?
A3:Of course.
Q4:Can you provide OEM?
A4:Yes,we can.
Q5:How about the delivery time?
A5:5-15 days according to the different quantity.
