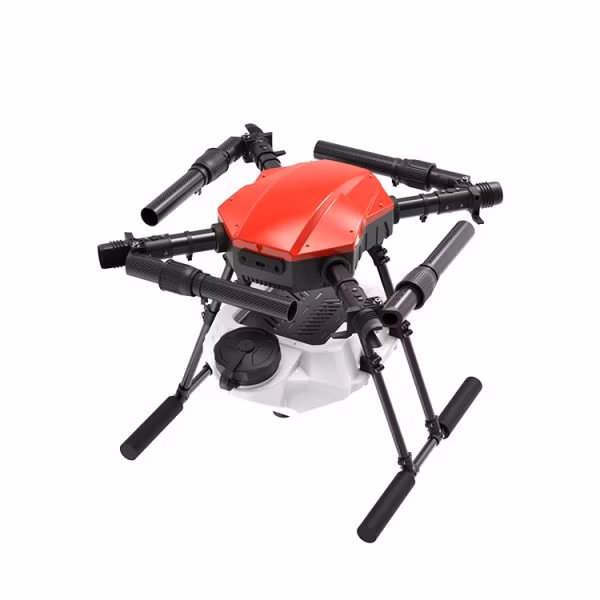

FDAD-16L(4X)-R 4 Axis 16L 16KG Capacity uav agricultural spraying
uav agricultural spraying 4 axis 16L agriculture drone is the upgrade version. Compared with the E416S, the biggest differences of it is integration. The structure of the FDAD-16L(4X)-W's fuselage has been improved. The body is different from the original carbon structure, and the improved product is processed by plastic injection molding.
The FDAD-16L(4X)-W Series agriculture drones continues the classic design elements of the old E series. It adopts red and blue color matching, a streamlined body design, and the whole body is waterproof, without fear of high pressure washing. The new FDAD-16L(4X)-W series upgrade product adopts a new integrated molding process. Complex to simple, the fuselage is integrated from dozens of original parts into a whole, and the fuselage is made of high-strength and impact-resistant materials, which are strong and anti-fall.
| Description | |||||
| wheelbase | 1362MM | ||||
| Unfolded size | 1844*1844*628MM | ||||
| Folded size | 648*671*628MM | ||||
| Tank capacity | 16L | ||||
| Frame weight | 6.5KGS | ||||
| Frame and spraying weight | 7.4KGS | ||||
| Frame and motor sets weight | 15KGS | ||||
| No-load takeoff weight | 21KGS(including 1*12S 22000mAh battery 6KGS) | ||||
| Full load Take-off weight | 37KGS | ||||
| Nozzle | Ceramic sprinkler head imported from Germany/China | ||||
| Number os nozzles | 4pcs | ||||
| Flight Speed | 3-8 Meter /Sec | ||||
| Spray width | 3-6 Meter /Sec | ||||
| Max spraying flow | 1.5-3 kg/min. (Max. 4kg/min.) | ||||
| spaying efficiency | 1.5-3 Acres/Min. | ||||
| Water Pump Pressure | 0.48mPa | ||||
| Delivery package size | Aluminum Box 700*700*700mm 25kg | ||||
| Transport volume weight | 89kg | ||||
| The fuselage material | Carbon fiber composite | ||||
| Max flight time (no load) | 10-15min | ||||
| Max flight time (full load) | 8-10min | ||||
| The tank volume | 16L | ||||
| Working temperature work | -15°C~45°C | ||||
| Signal effective range | 5km | ||||
| Flight Control systems | Boying | ||||
| Dynamic System | Hobbywing X9,Pipe: 40mm | ||||
| Spraying System | High Pressure Spray | ||||
| The battery specification | 12S 22000mah*1PCS | ||||
| work power | 44.4V(12S) | ||||
| Charging Time | 0.5-1hour | ||||
| Recharge Cycles | 300-500 times | ||||
| Daily efficiency(6hours) | 300-500acres | ||||
| Storage ambient temperature | For less than 3 months: - 20 ° C ~ 45 ° C For more than 3 months: - 22 ° C ~ 28 ° C | ||||
| Hover time | 15min(take-off weight 21kg) 8min(takeoff weight: 37kg) | ||||
| Standby time of remote control | 8hrs | ||||
| Function | |||||
| 1. Android ground station, easy to use / PC ground station, full voice broadcast | |||||
| 2. Router Setting support, Fully Auto Flight operation with A,B Point operation. | |||||
| 3. One Button take-off and landing, More safety and time saving. | |||||
| 4. Contrinue Spraying at Breakpoint, Auto Return when finish liquid and low Battery. | |||||
| 5. Liquid Detection, Break Point record setting. | |||||
| 6. Battery Detection, Low Battery return and Record point setting available. | |||||
| 7. Terrain following Radar, Stable Altitude setting | |||||
| 8. Vibration Protection, Lost Contact protective, Tank empty detect | |||||
| 9. Motor Sequance Detection and Direction detection Function. | |||||
| 10. Dual Pump Mode | |||||
| 11. The night vision function | |||||
| 12. Three anti - one lamp | |||||
| Main feature | |||||

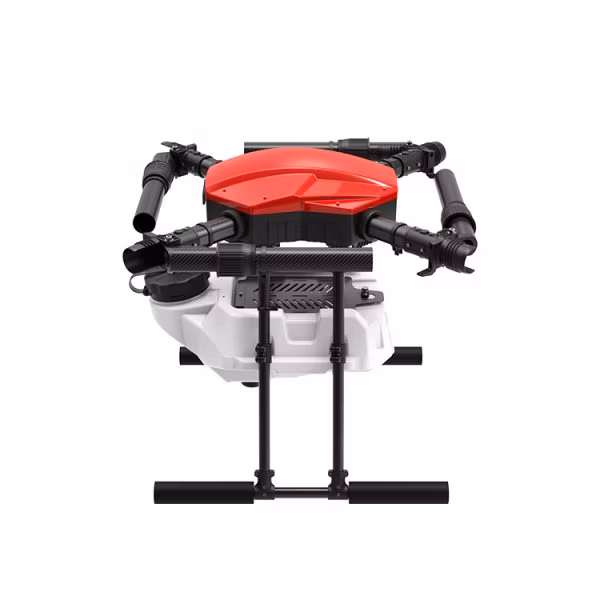

| 1. Crossfolding Method ,The arms of the FDAD-16L(4X) are folded in a staggered way, minisize the folding size, more convenient for transportation. | |||||
| 2. Integrated Fuselage Frame The fuselage frame of the FDAD-16L(4X)Agriculture spraying drone is formed n one body, which simplify the structure and improve the strength of the frame. Therefore, the FDAD-16L(4X) has good durability and reliability. | |||||
| 3. Quick Release Battery & Tank The water tank of the FDAD-16L(4X)adopts plug-in design, and the battery can be placed vertically in the battery compartment.The size of the battery compartment is 168mm in length, 93mm in width and the height is not limited. Any 12S battery in this size can use on the FDAD-16L(4X) drone. It is convenient to replace the tank and battery. | |||||
| 4. Dustproof and Waterproof The whole drone is dustproof and waterproof, and the waterproof grade reachs IP65. The frame can be washed directly with water. | |||||
| 5. Great Expandability The radar, fpv camera, pump and some other parts can install on the drone. | |||||
