Basic Info.
Model NO.
SX 1000
Feature
Evenly Spraying, High Production Efficiency
Capacity
800L 1000L 1200L 1500L 2000L
Diameter
79 Cm
Usage
Agriculture
Showroom Location
None
Weight
150 Kg
Suitable
Suitable for Large -Scale Orchards
Horizontal Range
14000mm 20000mm
Video Outgoing-Inspection
Provided
Marketing Type
New Product 2022
Core Components
Engine, Gear, Motor
Product Name
Trail Type Air Blast Sprayer
Characteristics
Evenly Spraying
Application
Grassland, Mountains, Farm
Liquid Contained
Medicine
Specification
Packing size: 3200*1560*1500 7.8 CBM Weight: 680kg
Trademark
ShuoXin
Origin
Hebei, China
HS Code
8424490000
Production Capacity
200sets/ Month
Packaging & Delivery
Package Size
130.00cm * 140.00cm * 110.00cm
Package Gross Weight
450.000kg
Product Description

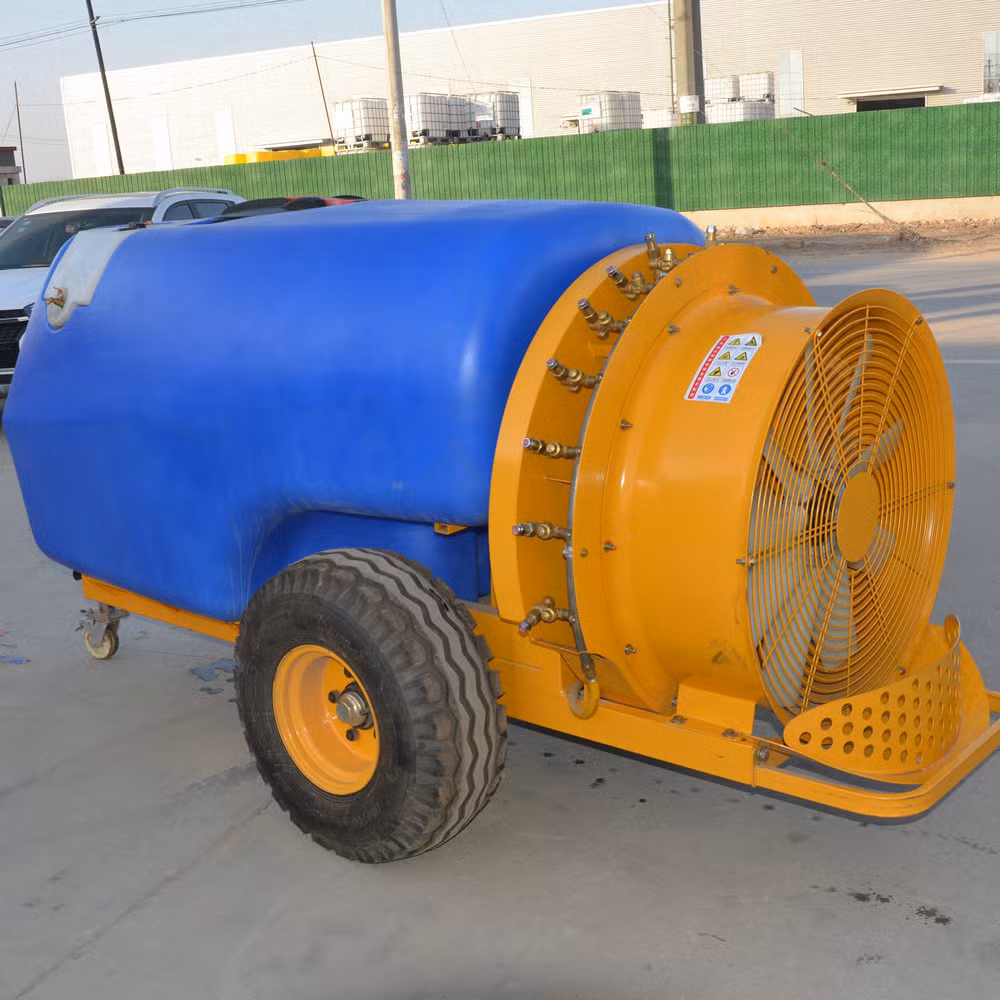

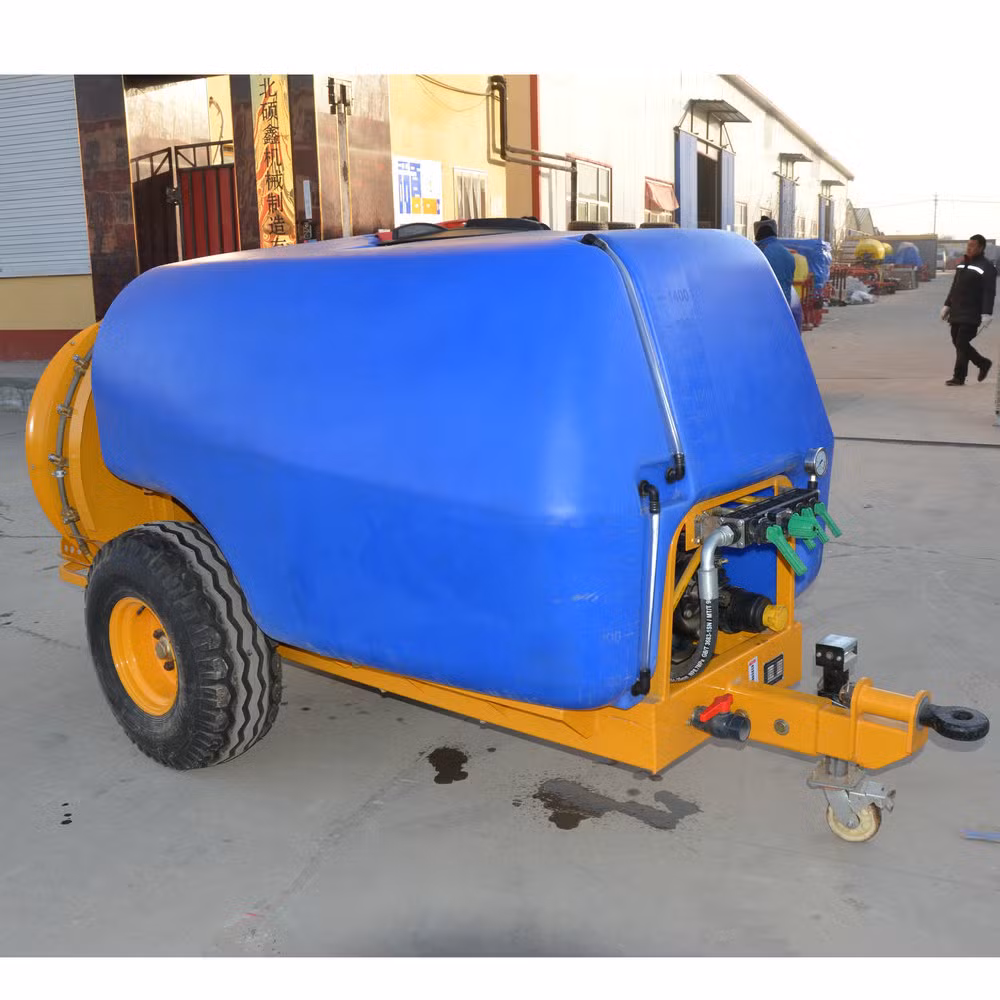

Air Blast Sprayers
will help you cover both sides of the leaf by providing complete coverage with our adjustable air-assisted design. Our Shuoxin Air Blast Sprayer's compact frame can be pulled by a small tractor and is ideal for vineyard and young orchard spraying. The 800L -2000L Mega Squirt can tackle orchard spraying jobs.
Make the most of your airblast sprayer, your most valuable orchard asset.
Huge Fan
Huge Fan with diameter of 800mm, which can give longer Horizontal Range
12 Nozzles
12 Strong Brass Nozzles in two side of the parayer part, Angle and velocity can be adjusted.
Tractor trailer type
Strong Tyres loading system, use best steel part to load the huge tank.
Iron Fan Cover and Guide
Steel Wire made fan cover can protect the fan and improve air flow, Iron guide to protect the fan and nozzle.
PTO Transmission Pump
Diaphragm pump with 4/6 cylinders are available.
Water manifold
Water Three valve manifold plastic and alloy material available, Internal jet agitator covered.
| Model | 3WFQ-800 | 3WFQ-1000 | 3WFQ-1200 | 3WFQ-1500 | 3WFQ-2000 |
| Tank capacity(L) | 800 | 1000 | 1200 | 1500 | 2000 |
| Dimension(mm) | 2300*1300*1400 | 2660*1300*1460 | 3100*1400*1500 | 3300*1400*1500 | 3720*1510*1630 |
| Horizontal range(M) | 20 | 22 | 22 | 22 | 22 |
| Working pressure | 0.5-1.0mpa | 0.5-1.0mpa | 0.8-1.0mpa | 0.8-1.0mpa | 0.8-1.0mpa |
| Pump | Diaphragm pump | ||||
| Matched Power(HP) | 50 | 50 | 50 | 50 | 50 |
| Rated Flow(L/min) | 80-100 | 80-100 | 80-100 | 80-100 | 100-140 |
Self-cleaning pressure line strainers
Brass or Plastic flipover nozzle bodies
Frame, blower and other Iron components are Spray-painted
| Polyethylene tank with hydraulic jet agitation |
| Clean water hand wash safety tank |
| External tank level sight gauge |
| Hinged tank lids with strainer baskets |
| In tank chemical mixer |
| Branded diaphragm pump |
| Large, easy-to-access suction strainer |
| Stainless steel boom pipes |
| Nozzles: one set for dilute spraying, the other for concentrate spraying |
| Standard PTO shaft with cover |
Shuoxin, Sure thing.
Hebei Shuoxin Machinery Manufacturing Co., Ltd has been in the agricultural machinery industry for more than 30 years, the product range covering spraying machines, fertilizer spreaders, manure spreaders, mowers, rakes, land levellers and so on. In the 30 years' service for agriculture field, Shuoxin has grown into an enterprise that integrates multiple business modules such as Design, Manufacture, Service and Information Survey. Shuoxin agricultural machinery have done a important work to nutrition supply and plant diseases & insect pests control for crops such as wheat, cotton, corn, rice, orchards and vegetables. With the ISO System certificates and CE production certificates, Cooperating with Shuixin can guarantee the partners with advanced machine products, reduced labor cost, improved work efficiency and promoted product revenue.
Iron Farme Packing
All the machines are fixed in the Iron Frame by steel wire, the Frame use the steel which is thicker than 3mm. Strong enough to carry and protect the machine.
Black plastic film will also protect the machine from rain and sun shine.
All the frames is welded according to the machine size, to make sure the minimum size and weight.
