Basic Info.
Type
Wheel Tractor
Usage
Farm Tractor
Certification
CE
Drive Wheel
4WD
Emission Standard
Euro II
Fuel
Gas / Diesel
Service Life
6-10 Years
Size
Large
Color
Blue
Condition
New
Rops/Cab
Cab
Standard Pto Speed
540/1000
Hydraulic Output Device
4
Tillage Depth Adjustment
Mechanical Hydraulic
Transport Package
Container
Specification
5550*2660*3260
Trademark
Brabus
Origin
Made in China
HS Code
8701901190
Product Description

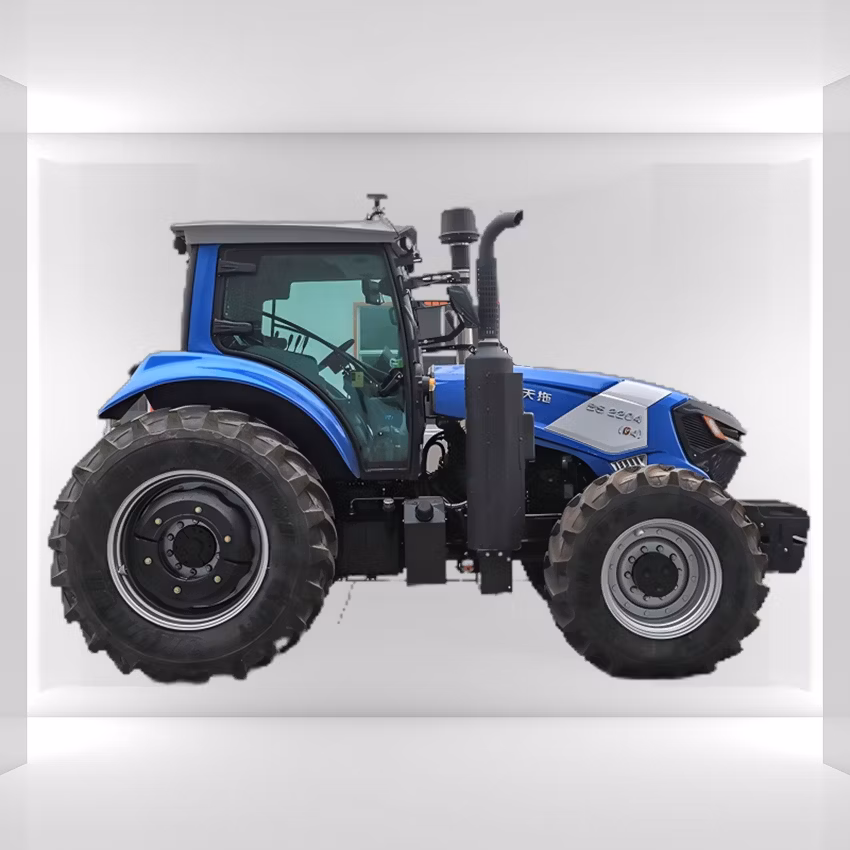

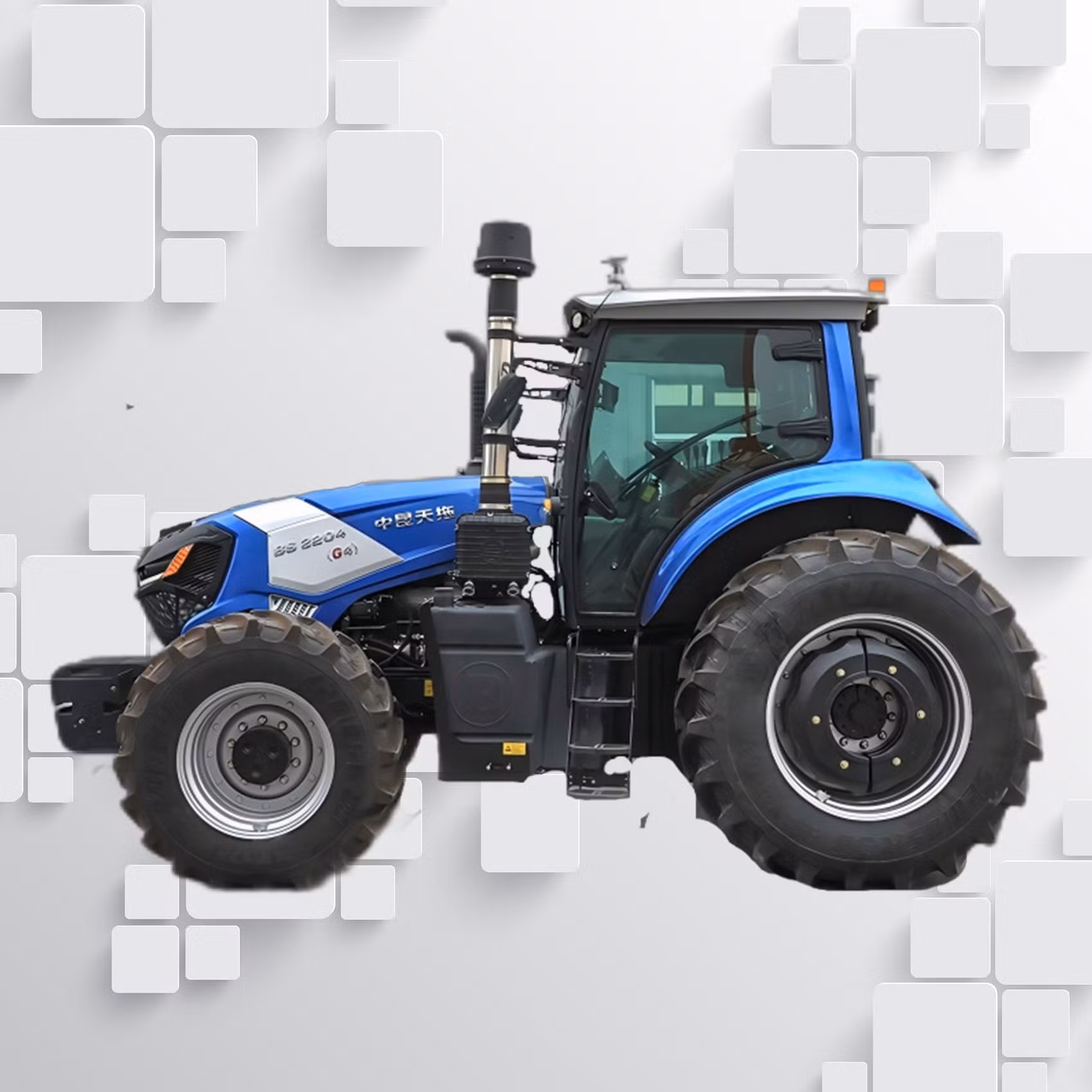

The National IV Weichai (P6) engine boasts a robust 220 horsepower diesel engine, paired with the Guhe magnified front axle for superior strength. Enhanced by the Huanghai clutch, the Kunlun Pinghua tires (20.8-38/16.9-28) provide optimal traction. The TS16+16 reinforced gearbox and larger fuel tank ensure extended operation. An independent hydraulic fuel tank and clutch hydraulic power assist offer precision control. Four hydraulic outputs cater to diverse needs, while the luxurious three-level jump seats enhance comfort. Quick suspension bolsters are reinforced for reliability. Enjoy versatility with the 540/1000 dual-speed PTO and the lavish four-pillar cab, equipped with front and rear driving cameras. Additional features include a car refrigerator, water dispenser, a three-layer rear counterweight (60KG), and a front counterweight of 74 weighing 15 pieces each. With Sinan navigation and GPS, navigation is seamless.
Tailored for precision, this machine excels in field spraying and fertilization. The PTO empowers agricultural implements like sprayers and fertilizer applicators. Hydraulic outputs allow meticulous control over nozzle angles, heights, spray volumes, and fertilizer distribution, ensuring efficient and customizable farming operations.
The superior suspension system guarantees smooth travel even when carrying heavy loads like pesticide cans or fertilizer boxes, ensuring consistent and uniform application during spraying and fertilization tasks.
2. Harvesting Functions (as a Power Traction Device)
During peak harvest, this tractor transforms into a reliable powerhouse for towing combine harvesters. The dual-speed PTO adapts to the harvester's power needs, fueling the cutting, threshing, and conveying processes with unmatched efficiency and reliability.
With a stable chassis and advanced suspension, the tractor navigates rugged terrains effortlessly while towing harvesters. Strategically configured front and rear counterweights ensure balance, preventing tilting and maintaining performance integrity throughout the towing endeavor.
| Model | BS2204(TS) | ||
| (××) Dimension (L×W×H) | mm | 5550*2660*3260() | |
| (kg)Min. operating weight | kg | 7510 | |
| Wheelbase | mm | 2860 | |
| Wheel track (front/rear) | mm | 1900,2000,2050,2150,2250/ 1800-2550 | |
| Engine | Model | / | WP6G220E476() |
| Type | / | In line, direct injection, four stroke | |
Qty of cylinders | cylinder | 6 | |
| Rated power | HP/KW | 162 | |
| Rated speed | /r/min | 2200 | |
Drive train | Clutch | / | Mechanical double action |
| Gearbox | / | TS16+16 | |
| Gear shift type | / | Mechanical graded gear | |
| Steering | Steering type | / | Fully hydraulic |
| Brake | Brake type | / | drum-type |
| Walking device | (/)Tire size (front/rear) | / | 16.9-28/20.8-38 |
Working device | Suspension device type | / | Rear three-point suspension |
| Suspension device category | / | 3type | |
| Tillage Depth Adjustment | / | Mechanical hydraulic | |
| Hydraulic output device | group | 4 | |
| Standard PTO speed | /r/min | 540/1000 | |
| /rops/cab | pilothouse | ||
